Murfor EFS/Z Masonry Reinforcement

Brand: Murfor

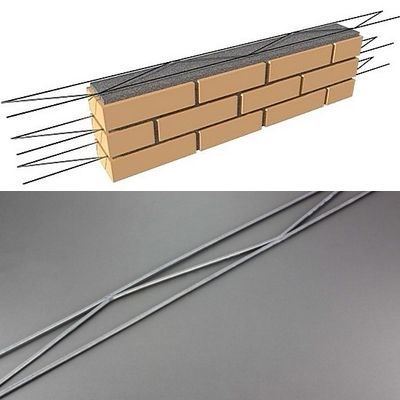

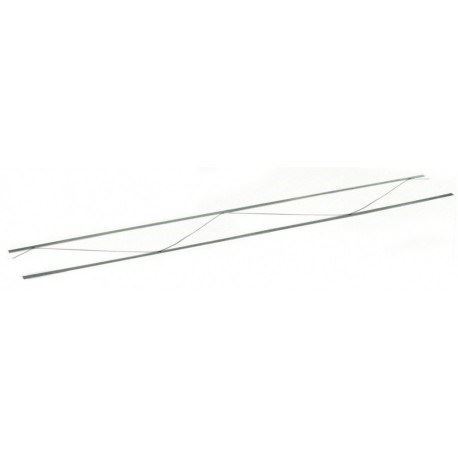

Murfor® EFS is the masonry reinforcement solution from industry specialist Bekaert that will allow you to perform your masonry works in full confidence. Murfor® EFS is a thin bed joint reinforcement consisting of two parallel wires welded together with a continuous truss wire. Complying with today’s toughest industry standards, Murfor® EFS signifcantly increases the strength of your masonry and the integrity of your construction.


Please click on "Offer Request" button below to send your offer and detailed information request to the company for the Murfor EFS/Z Masonry Reinforcement product.

Offer Request Add to Panel
Tag:
Wall block Wall reinforcement
1Application Area

Shopping malls, hospitals, stadiums, schools, public buildings, military facilities, industrial buildings, structural reinforcements

2Material

Steel

3Specifications

Combining its excellent performance with
cost-effectiveness, Murfor® EFS offers you
and your construction projects:
• new architectural possibilities
• structural performance
• crack control

Murfor® EFS Welded wire meshwork bed joint reinforcement in structural uses in wall and partitions as covered in the scope of EN 845-3: 2013+A1: 2016

Dimensions
Murfor® EFS/Z-040 Width 40mm øLongitudinal 8 x 1,5mm Length 3050mm Weight 0,618 kg Area 25.7mm2 650 N/mm2
Murfor® EFS/Z-090 Width 90mm øLongitudinal 8 x 1,5mm Length 3050mm Weight 0,621 kg Area 26.6mm2 650 N/mm2
Murfor® EFS/Z-140 Width 140mm øLongitudinal 8 x 1,5mm Length 3050mm Weight 0,626 kg Area 25.5mm2 650 N/mm2
Murfor® EFS/Z-190 Width 190mm øLongitudinal 8 x 1,5mm Length 3050mm Weight 0,633 kg Area 25.3mm2 650 N/mm2

4Quality Assurance Certificates

- DIN EN ISO 9001 : 2008
- ISO 14001 BEKAERT
- KOMO_HLO IKB1239_kv15
- ATG:ARMATURE DE JOINT HORIZONTAL POUR MAÇONNERIE
- CE_labels Murfor®EFS
- CE_Declaration of Conformity
- CE_Declaration of Performance
