OC-Plan FCM 2015v ECB Geomembrane

Brand: OC-Plan®

OC-Plan FCM (Fresh Concrete Membrane) 2015v is a synthetic foundation waterproofing membrane made of Ethylene Copolymer Bitumen (ECB) with non-woven PP fleece backing , with one sided fleece-free self edge. OC-Plan FCM 2015v is used for the water proofing of water storage units, foundations, walls and similar below ground level applications.

Please click on "Offer Request" button below to send your offer and detailed information request to the company for the OC-Plan FCM 2015v ECB Geomembrane product.

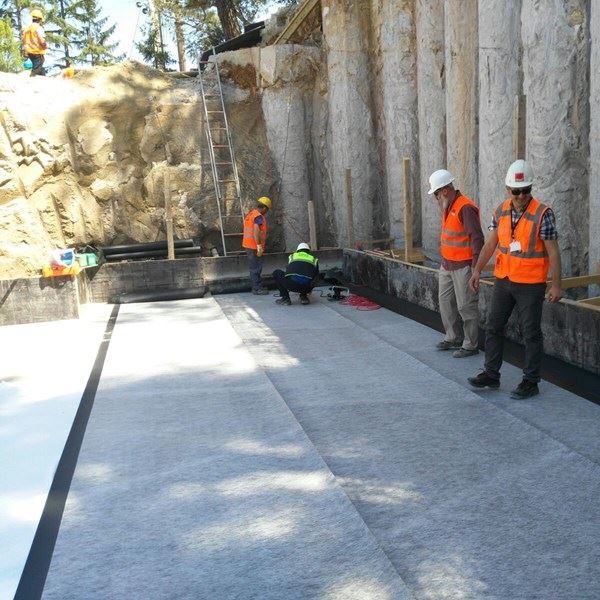

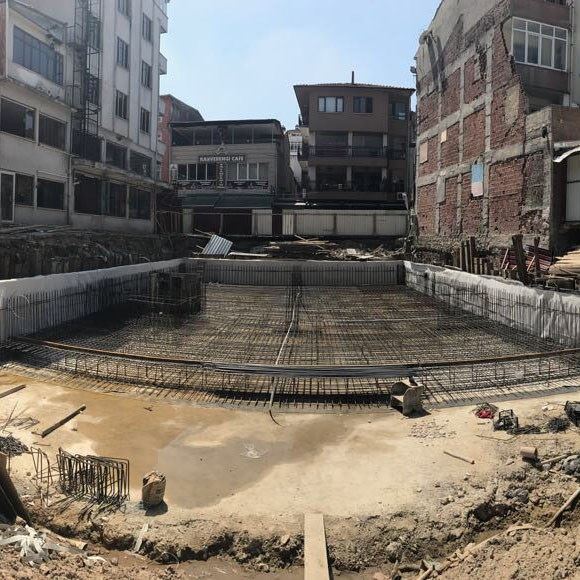

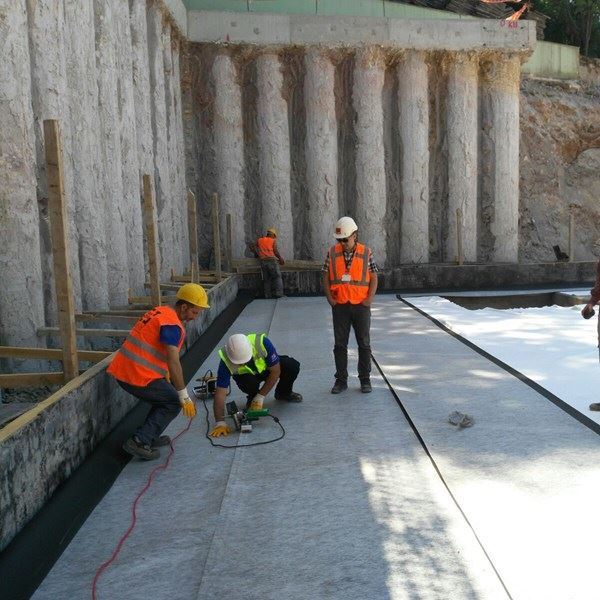

Foundation insulation, single face molded curtain insulation, pile foundations

Roll dimension: (DIN EN 1848-2) 1.50 X 20m
Actual Thickness: (DIN EN 1849-2) 1.5 mm
Tear Strength: (DIN EN 12310-2) ≥ 250 N
Tensile Strength: (DIN EN 12311-2) ≥ 300 N/50mm (method A )
Elongation: (DIN EN 12311-2) ≥ %50 (method A)
Water Tightness: (DIN EN 1928) ≥ 500 kPa
Resistance to Static Load: (DIN EN 12730) > 20 kg (method A/B)
Joint Shear Resistance: (DIN EN 12317-2) ≥ 300 N/50mm
Dimensional Stability: (DIN EN 1107-2) ≤ %1,5
Reaction to Fire: (DIN EN 13501-1) Class E
Foldability at low T: (DIN EN 495-5) ≤ -30° C
Impact Resistance: (DIN EN 12691) ≥ 300 mm (method A)
Water Vapor Diffusion Resistance Factor: (DIN EN 1931 – method B) 90.000

EN 13967
SKZ Testing GmbH
