Kömmerling

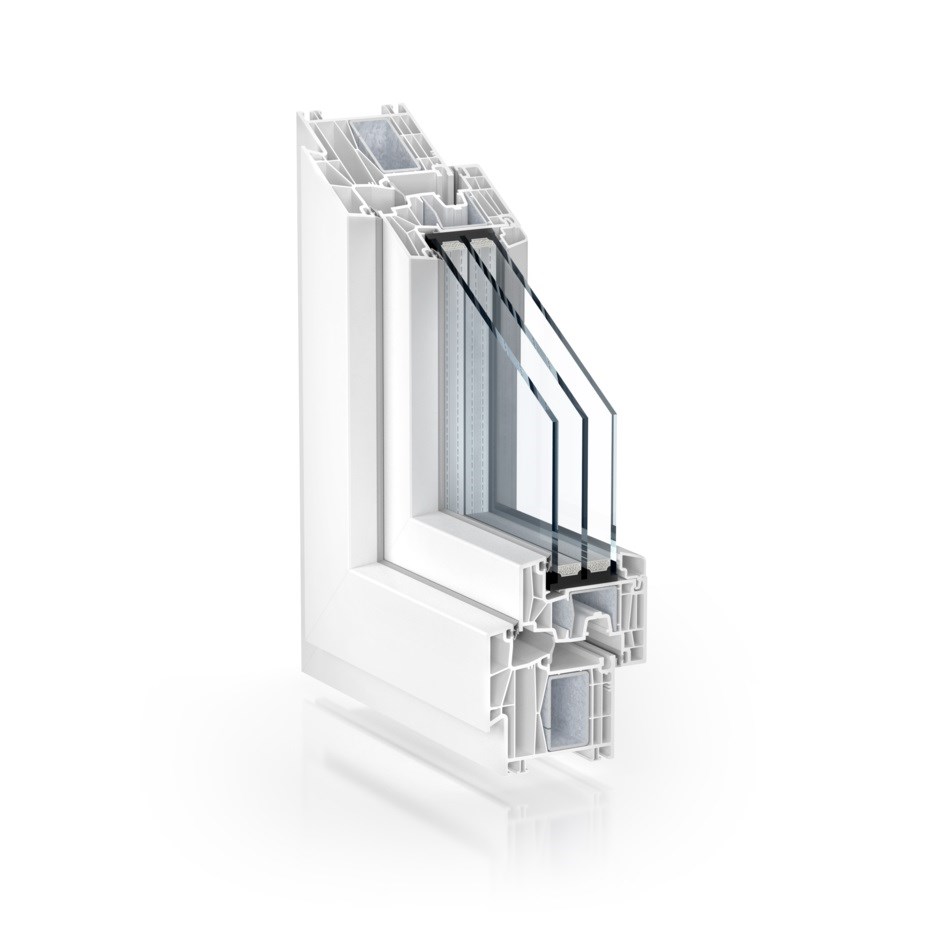

The Kömmerling 88 premium center gasket system ensures energy efficiency in all applications, with a high-quality standard that stands up to the demanding standards. Thanks to its highly insulated 7-chamber technology, the center gasket system provides insulation values that meet passive house standards even in standard applications.

Window shutter Window handle Window frame Passive house PVC door Weatherproofing window Sliding door Door systems PVC


Please click on "Offer Request" button below to send your offer and detailed information request to the company for the Window System | 88 MD product.

Offer Request Add to Panel

BENEFITS
• It features a premium center gasket system with an installation depth of 88 mm for windows and doors.
• It meets the IFT regulation WA-15/2 rating, providing excellent insulation values in passive house structures.

DESIGN
• Its cutting-edge design provides high ease of use and reliable functionality.
• The system, with its minimalist design suitable for all architectures, offers a wide range of laminate color options.
• It is also suitable for renovations. It offers the appropriate solution even for architecturally challenging projects with complex energy requirements.
• It provides an increased quality of life thanks to excellent sound insulation up to 47 dB.
• Its weather-resistant surface creates a comfortable living space.

HARDWARE
• Offers the option of using state-of-the-art triple glazing or functional glass up to 58 mm thick.
• Suitable for a wide range of applications, including home, balcony, and terrace doors, parallel sliding, and transom doors.

TECHNICAL SPECIFICATIONS
• Profile Width: 88 mm
• Seal: PC Gray/Black
• Thermal Transmission Coefficient: Uf = 0.93 W/m²K
• Wind Load Resistance: C5 / B5
• Water Tightness: 9A
• Air Permeability: Class 4
• Sound Insulation: 47 dB
• Burglar Resistance: RC 3 (WK 3)
