Aluminium Roof Drainage Systems

NEO | METAL

Brand: Neometal®

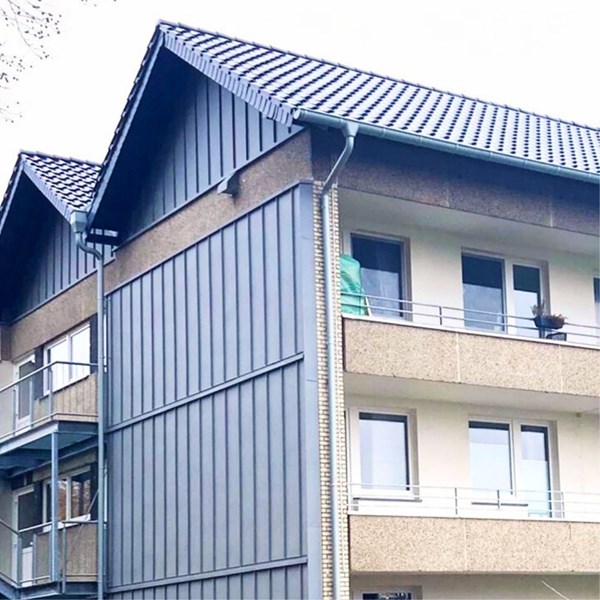

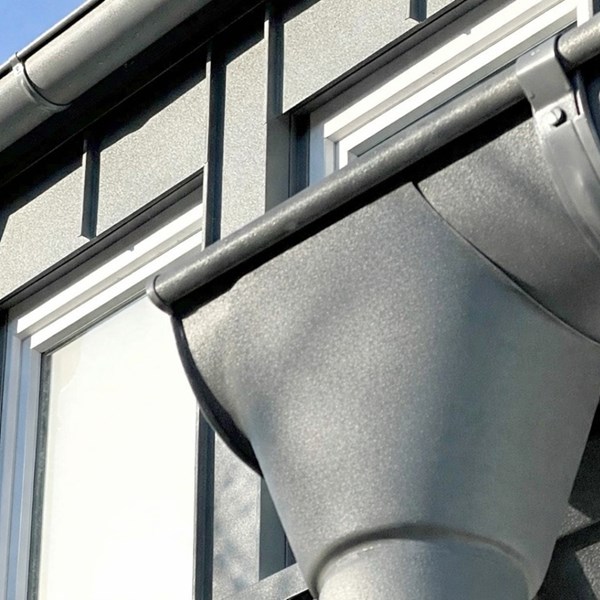

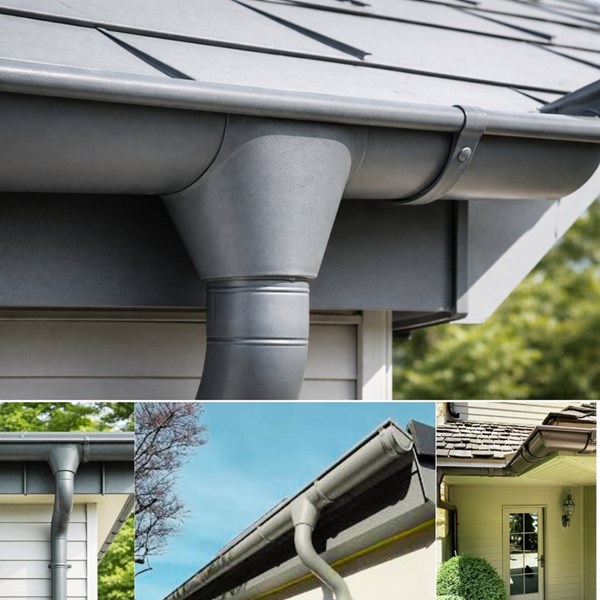

Neo Metal roof drainage systems stand out with color and texture harmony with the façade, a minimal design for modern architecture, and a complete accessory system. Their lightweight yet durable structure ensures long-lasting performance, while modular elements and smart bracket solutions enable fast and easy installation. With a wide range of colors and section options, aesthetics, functionality and application efficiency come together.

Roof rain water drainage system Downspout Rainwater drainage system Rainwater gutter

Please click on "Offer Request" button below to send your offer and detailed information request to the company for the Aluminium Roof Drainage Systems product.

Offer Request Add to Panel

• Residential buildings and luxury villas
• Modern façades and architectural envelope systems
• Single-family houses and multi-storey housing
• Hotels, resorts and boutique hotels
• Office and commercial buildings
• Public buildings and cultural facilities
• Renovation and restoration projects
• New-build projects with integrated roof–façade design

• Material: H41 temper aluminium with PUR surface coating
• Neo Metal roof drainage systems adapt to different architectural and hydraulic requirements with round and square (box) section options.
• Section Dimensions
- Round gutter sections: 280 mm · 333 mm · 400 mm
- Square (box) gutter section: 333 mm
• Downpipe diameters: Ø80 mm · Ø100 mm · Ø120 mm
• Gutter lengths: 3000 mm / 5000 mm
• Downpipe lengths: 2000 mm / 3000 mm
• Material thickness: 0.7 mm
• Material: H41 temper aluminium
• Surface coating: PUR coating
• Color Options
- Anthracite Pearls (RAL 7016 equivalent)
- Earth Pearls (DB 703 equivalent)
- Grey Pearls (RAL 7005 equivalent)
- Brown Pearls (RAL 8019 equivalent)
- Black Pearls (RAL 7021 equivalent)
- Bronze Pearls (RAL 780 equivalent)
• Performance
- The lightweight yet high-strength aluminium structure provides high corrosion resistance, long service life and low maintenance requirements.
- The PUR coating protects the surface against UV radiation and atmospheric effects.
- Thanks to the modular system and dedicated mounting brackets, installation is fast, safe and executed with precise tolerances.
- Roof–façade continuity is preserved, combining aesthetics with technical performance.

CE - GERMANY
EPD
