VISS Pivot Door / VISS Side Hung Door

Brand: VISS

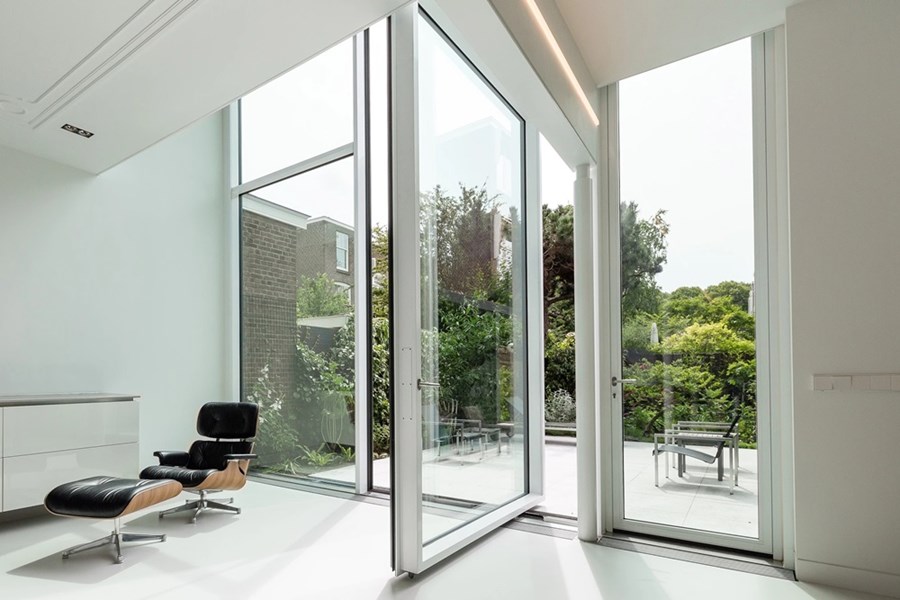

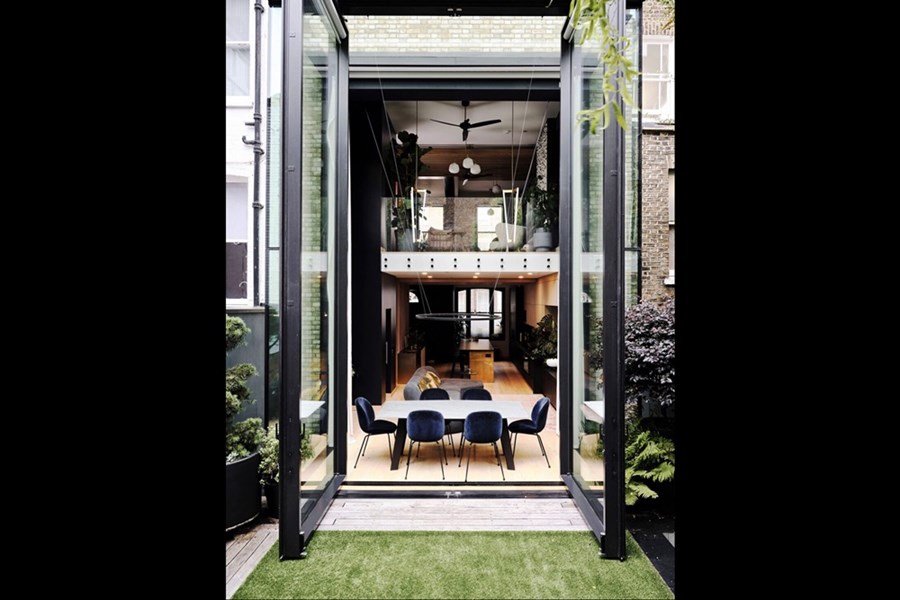

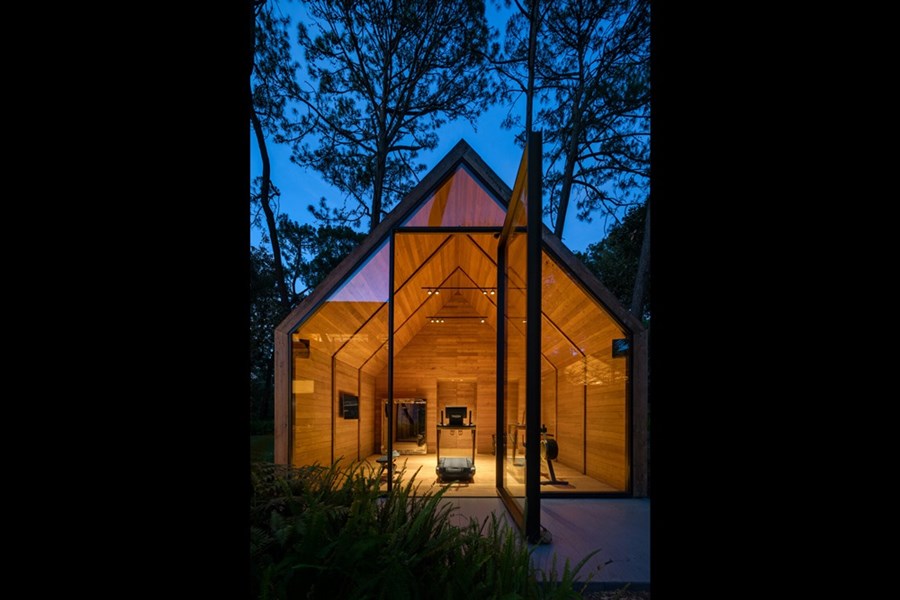

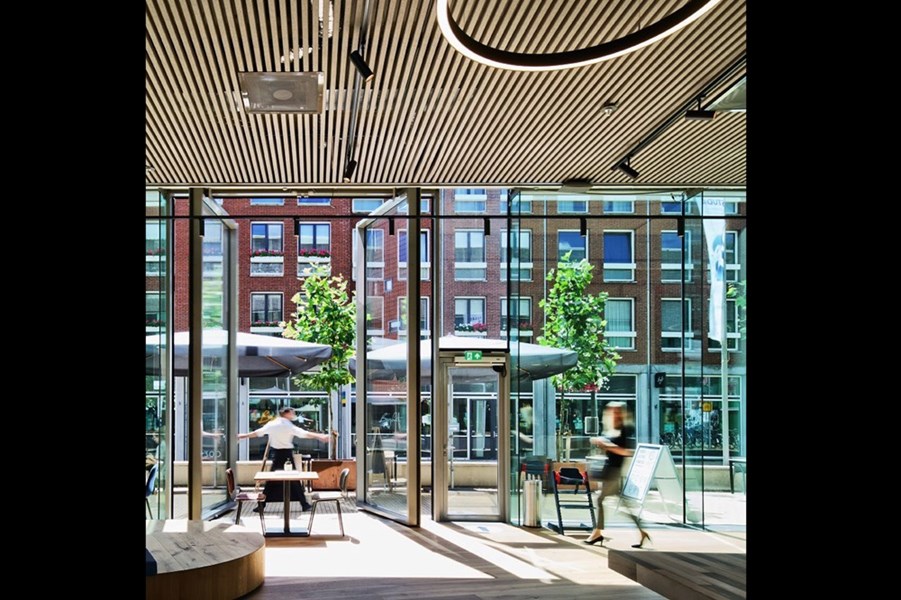

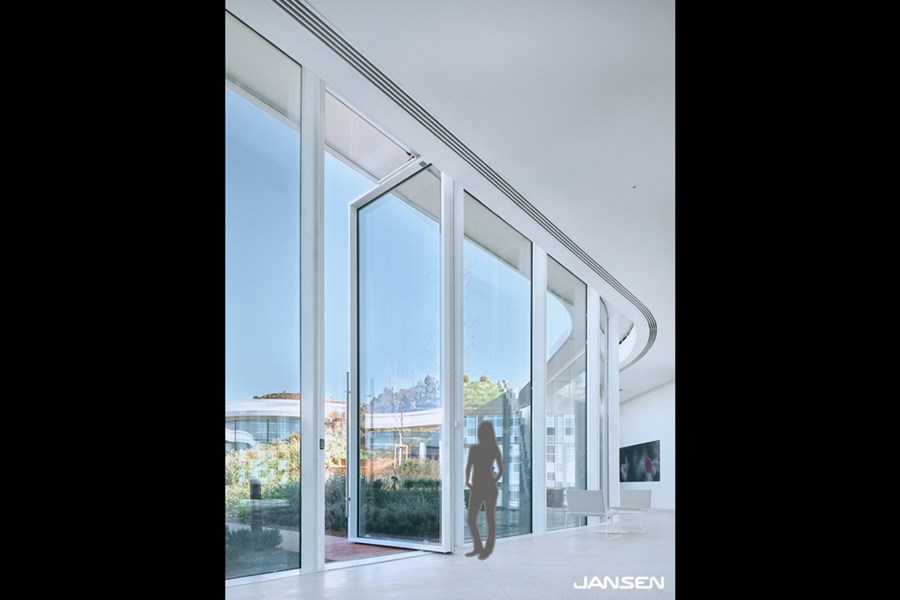

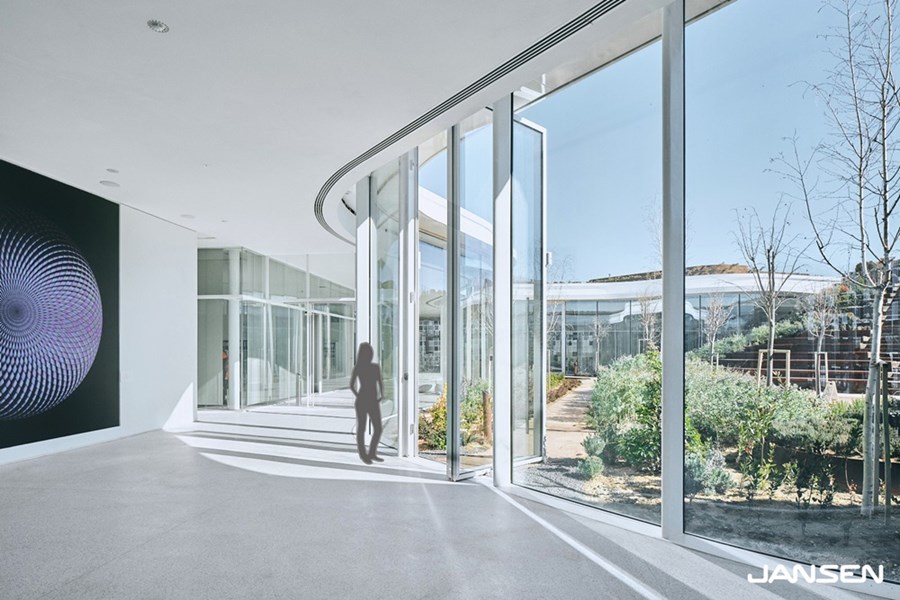

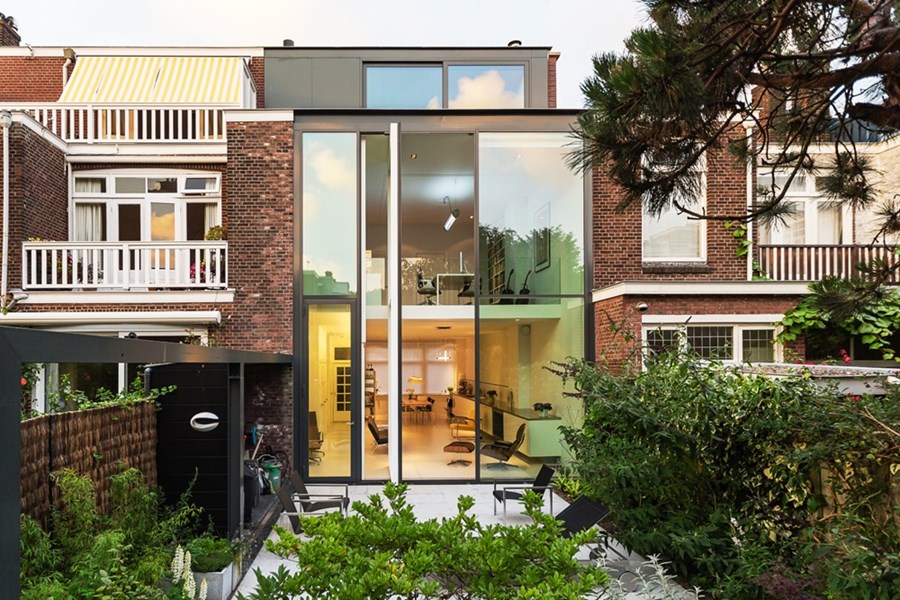

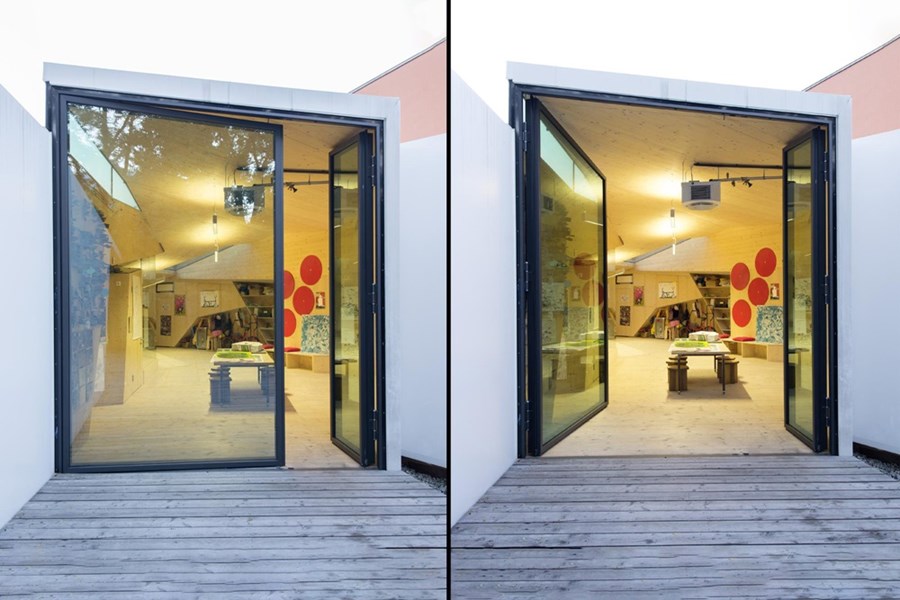

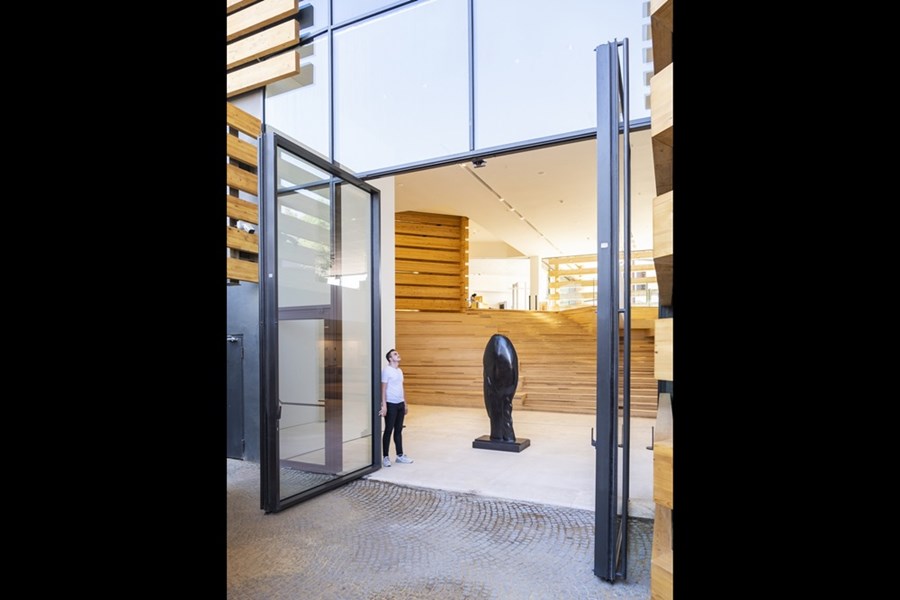

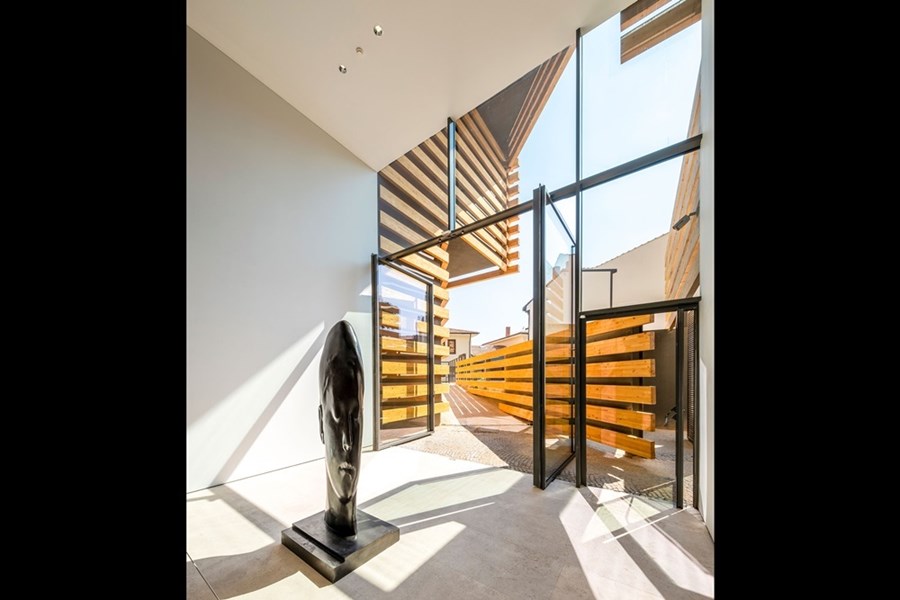

The VISS pivot door can be fabricated to suit the height of rooms and size of facade grid, thereby continuing the generous line of the VISS facade in the access areas. With this product we are extending the design options for large-segment glass facades, further enhancing the attractive and functional design of the facade. As part of the steel profile system, VISS Side-hung doors are based on VISS standard profiles. They offer a unique system solution for large façade openings that can be integrated into the building shell visually without compromising its aesthetics. Thanks to their integration as a system solution, they offer planning reliability with BIM data, data from JANIsoft and article availability ex stock (subject to prior sale). With the CE marking, it is suitable for wide-ranging use.


Please click on "Offer Request" button below to send your offer and detailed information request to the company for the VISS Pivot Door / VISS Side Hung Door product.

Offer Request Add to Panel
Tag:
Steel door Steel facade system
About the Product
1Application Area

Hotels, shopping malls, residential, administrative buildings, cultural centers and all outdoor areas

2Material

Steel

3Specifications

Materials / surface
• Bright or hot-dip galvanised steel strip, suitable for powder coating or enamelling
• Cover profiles in aluminium and stainless steel

Element types
• Single- and double-leaf doors, with and without fixed side sections and skylights

Loadbearing structures
• VISS system profiles, as well as on concrete and masonry

Equipment
• Large, thermally insulated VISS revolving doors for special applications from 2000 mm to 6000 mm in height and 550 mm to 2000 mm in width
• Permissible leaf weights up to 550kg with 4 hinges
• Profile and round cylinders

Special technical features

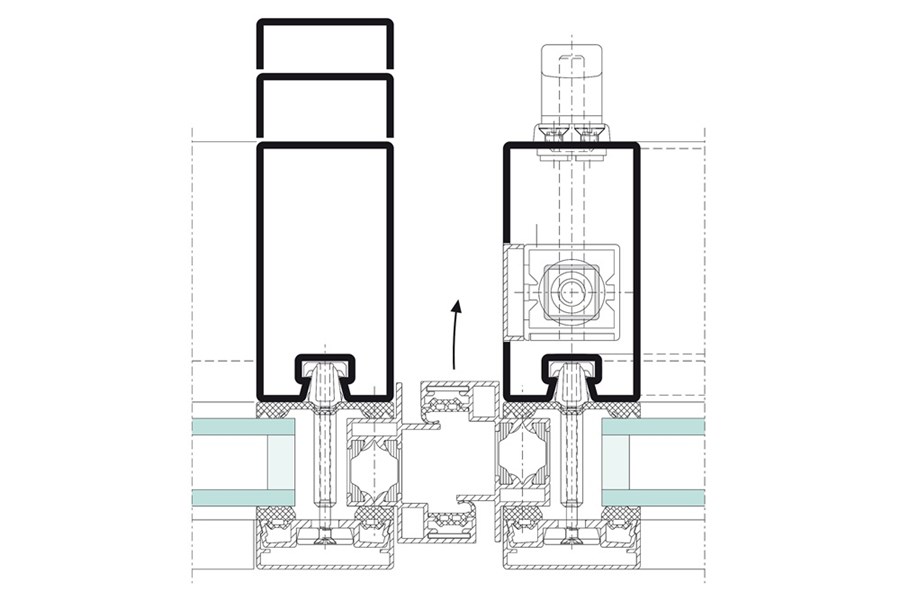

• Heat insulated door rebate profiles available for glass thicknesses from 17 to 52 mm

4Quality Assurance Certificates

• CE marking in accordance with product standard EN 14351-1
• Tightness against heavy rain of up to class 5A (200 Pa)
• Air permeability up to Class 4 (1600 Pa)
• Resistance to wind load up to Class 2 (800 Pa)
• Operating forces in accordance with EN 12217 Class 1
• Durability testing in accordance with EN 12400 Class 4 (50,000 cycles)
• Heat transfer coefficient (EN 13947) from Uf 2.0 W/m2K
• Fire behaviour (EN 13501) in an EPDM rubber sealing system: B-s2, d0, with CR sealing system: B-s1, d0
